Bronze Submersible Junction Box​

Adaptable Level Sensor

​UL and CSA Certified Colour or White LED Stainless Steel light

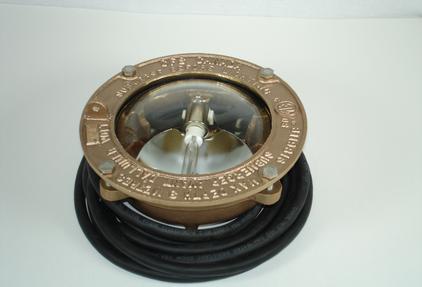

• Halogen Bronze Light 7" x 4"

• Colour lens: Red, Blue Green Amber and/or Turquoise

• Bronze swivel base for off vertical lighting

• Custom cable length available

• Clear tempered, heat resistant cast glass lens​

UL & CSA Certified Submersible LED Ring Light

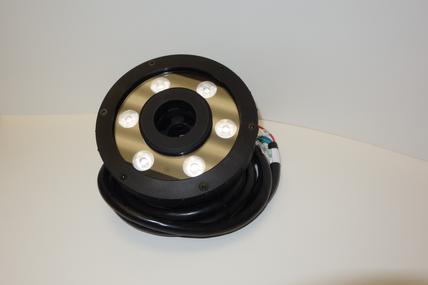

• Nylon ring light ​​6.5" x 2.5" x 3/4" Opening

• Available in colour or white

• Lighting solution for animated fountains
• A nozzle can be directly attached to the center

• Programmable to display a variety of colour and combination patterns

• Tempered glass lens

• 24VDC

• ​White: 12W,  RGB: 16W


​​​​​UL & CSA Certified Bronze Submersible  Light

• Available in 1" NPT or 3/4" NPT x 12" long
• Optional 6" length available

​​

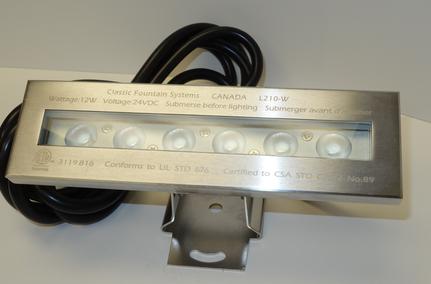

• Stainless steel linear light 8" x 2-1/2"

• Available in colour or white
• Versatile mounting bracket that allows for a 180* tilt
• Niche mounted optional
• Programmable to display a variety of colour and pattern combinations with custom controller
• Tempered glass lens

• EPDM Gasket
• 24VDC

• White: 12W,  RGB: 17W

​​​UL & CSA Certified  LED Spot Light

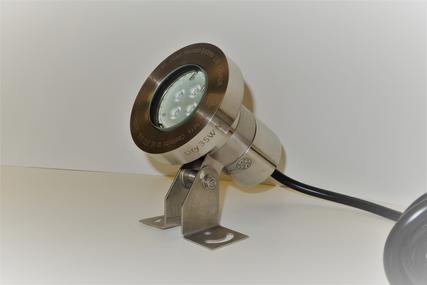

• ​Stainless steel MR16 Light 3" x 4"
• Available in colour or white

• Stainless steel base optional base available
• Tempered glass lens

• 12VACDC.  Optional 120 VAC available
• MR16 lamp
• Can be used as submerged or in a dry landscaping application

​​

• Stainless steel ring light 8" diameter  x 2" high x 1.5" threaded opening

• Available in RGB colour changing or white
• Programmable to display a variety of colour and pattern combinations with custom controller
• Complete with 10ft STW18/3 or 18/5 submersible cable
• Termpered glass lens​

• EPDM Gaskets
• 24VDC
• White:  28W,   RGB: 36W

UL & CSA Certified wet/dry LED Light

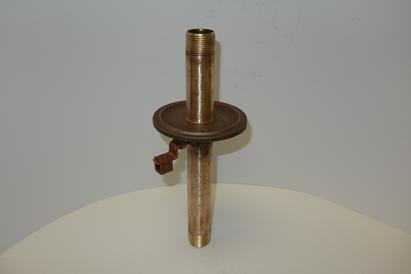

Bronze Electrical Stub Up Conduit

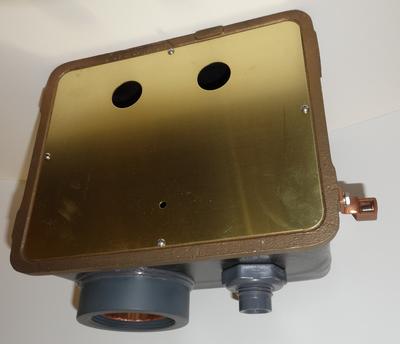

• Flush Wall-Mounted Electronic Level Control and Overflow

• ​10" x 12" x 5-3/4"

• Low voltage for safety​

• Flush wall mounted for limited size application

• Level sensors and standpipe make for easy adjustment after installation

• Connects to ECL control panel

• ​3/4" Inlet connection

• 3" Drain connection


Electronic Level Control and Overflow

UL & CSA Certified Submersible LED Linear Light

UL & CSA Certified Submersible LED Ring Light

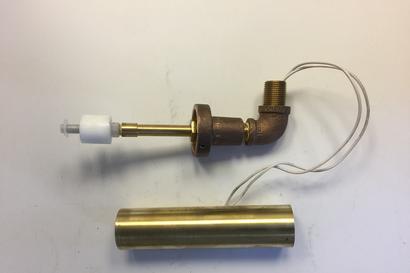

• Adaptable Level Sensor 9-1/2" x 1-1/2"​

• Adaptable to all junction boxes, made for custom application    and conditions

• Connects to ECL control panel

• Can be used for quick pool filling or​ safe off for pumps
• ​1/2" connection


​​​​​​​​​638 Petrolia Road, Toronto, ON M3J 2W3, CANADA

                 +1.416.663.8989               tracytclassicfountains.net

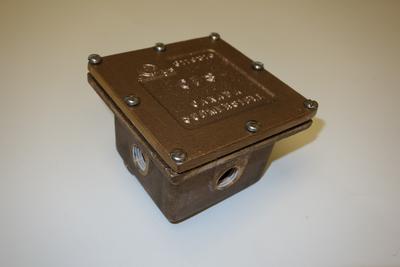

• ​​Bronze ​​​​​​​underwater junction box 4 1/2" x 4 1/2" x 3 3/4" deep with up to 4 x 1/2" connections. 1" bottom connection​

• Bronze underwater junction box 4" x 4" x 3" deep with 2 x 1/2" connections, 3/4" bottom connection​

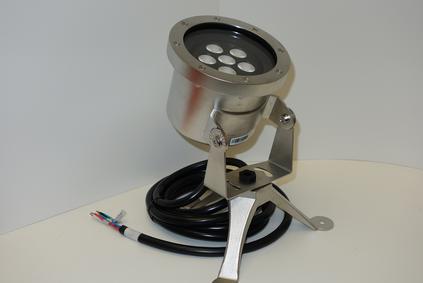

• ​Stainless steel spot light 6" x 4-1/4"

• RGB colour changing or white

• Complete with STW 18/5 submersible cable

• Tempered Glass Lens
• EPDM Gasket

• 24 VDC

• ​White 24W


​​​​​​​​​​​Classic Fountain Systems​​
